_Form your own inserts.
A common problem facing manufacturing is how to get threads in thin walled materials. Not anymore with Formdrill!
Historical answers have been weld nuts or threaded inserts, but these techniques have many drawbacks such as costs in time and expense, more production steps, adding external elements, and overall quality.
The Formdrill solution is an easy process which uses proven technology:

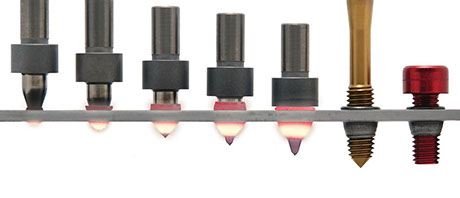

First a bushing is created out of the parent material with a Formdrill tool.
This bushing increases the area available for tapping.
Secondly a Formtap forms strong threads in this bushing without any cutting.
Now you are ready for assembly.
1
Drill
2
Tap
3
Assemble
_What is Formdrill ...
A quick introduction to the process, just watch this animation (sound on)
_Can be used for
the following types of metal
No special machines are required to use the Formdrill system, a standard drill press
is sufficient. CNC-centers, milling machines, pneumatic or hydraulic drill units are
also suited.
The Formdrill application is being used by thousands of different companies in
many different manufacturing industries including (but not limited to) automotive, furniture, and HVAC.
Typical applications are: threaded connections, bearing sleeves, sealing surfaces,
pivot points and brazing or soldering joints.
_The advantages of the
Formdrill system are
High load
threads -
Stronger joints
Cost savings
(up to 90%)
High process
reliability
No special
machinery
required
Faster
production
cycles
Small
investment
Long
tool life
Increased
material
thickness
Chipless
process
Reduced
labor costs
No added
fasteners or components
Easily
automated
